SpoofEngine Class Reference

Main engine class for processing images and applying visual features. More...

#include <SpoofEngine.h>

Inheritance diagram for SpoofEngine:

Collaboration diagram for SpoofEngine:

Public Member Functions
	SpoofEngine ()
	Default constructor for the SpoofEngine class.
	~SpoofEngine ()
	Destructor for the SpoofEngine class.
virtual void	init (std::string resourcePath)
	Initializes the engine with the specified resource path. More...
virtual void	process (cv::Mat &input, cv::Mat &output)
	Processes an input image and produces an output image. More...
Public Member Functions inherited from EngineBase
	EngineBase ()
	Default constructor for the EngineBase class.
virtual	~EngineBase ()
	Destructor for the EngineBase class.
void	addSigno (cv::Mat &image)
	Adds a watermark (signo) to the specified image. More...
void	drawHistoryChart (cv::Mat &frame, const cv::Rect &haloRect, const std::deque< std::map< std::string, double >> &history, const std::map< std::string, cv::Scalar > &colors)
	Draw a simple line chart visualizing the value history for a detection. More...

Additional Inherited Members
Protected Member Functions inherited from EngineBase
cv::Mat	preProcessImage (cv::Mat &image)
	Prepare the input image for further processing. More...
cv::Mat	postProcessImage (cv::Mat &image, cv::Mat &workingFrame)
	Remove padding and convert the processed image back to the original format. More...
Protected Attributes inherited from EngineBase
std::string	faceVerticesPath
	Path to the face vertices data file in the virtual file system.
core::face::FaceDetectorYunet	detector
	Face detector object used for detecting faces within images.
visualization::FaceDrawer	faceDrawer
	Face drawer object used for drawing face landmarks and features.
core::face::FaceMesh	faceMesh
	Face mesh object used for managing facial geometry data.
core::filter::LandmarkFlowFilter	filter
cv::Rect	imageRect
float	padding_ratio = 0.3
int	top = 0
int	bottom = 0
int	left = 0
int	right = 0
std::map< int, std::deque< std::map< std::string, double > > >	mHistory
Static Protected Attributes inherited from EngineBase
static constexpr size_t	HISTORY_LENGTH = 50

Detailed Description

Main engine class for processing images and applying visual features.

The SpoofEngine class handles initialization, image processing, and adding a watermark (signo) to images. It utilizes resources for face detection, face mesh, and visual enhancements, such as makeup templates.

Member Function Documentation

init()

void SpoofEngine::init ( std::string  resourcePath )

virtual

Initializes the engine with the specified resource path.

Parameters

resourcePath

Path to the resources needed for initialization.

Reimplemented from EngineBase.

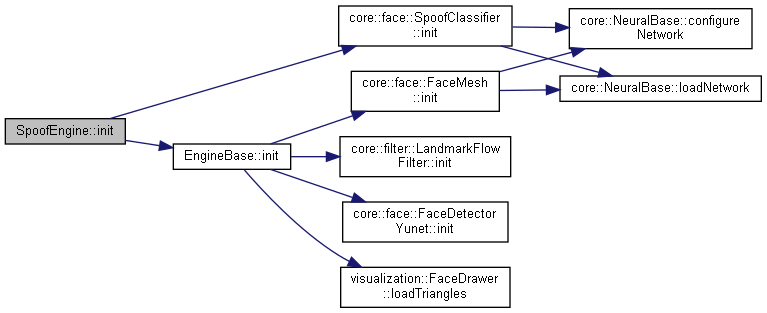

Here is the call graph for this function:

process()

void SpoofEngine::process ( cv::Mat &  input, cv::Mat &  output  )

virtual

Processes an input image and produces an output image.

This method applies various transformations or effects to the input image using face detection and enhancement tools.

Parameters

input	Reference to the input image (cv::Mat) to be processed.
output	Reference to the output image (cv::Mat) where the result is stored.

Implements EngineBase.

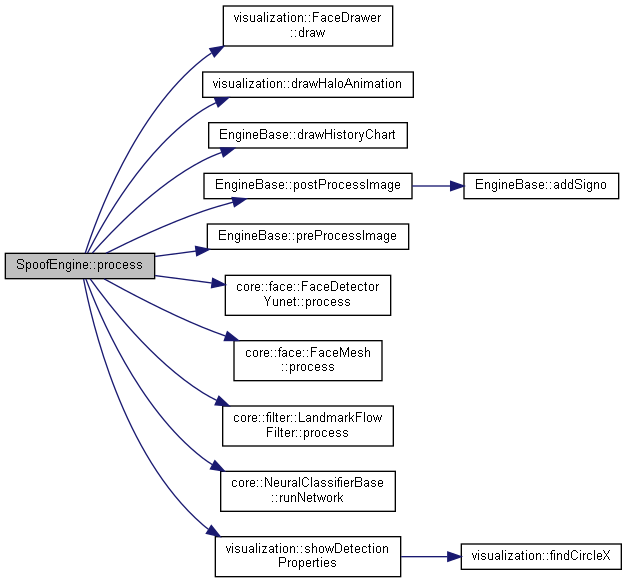

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• C:/Projects/Engine/AntalEngine/Engine/SpoofEngine.h
• C:/Projects/Engine/AntalEngine/Engine/SpoofEngine.cpp
